CaseIH 5150 Maxxum Transmission


CaseIH 5150 Maxxum tractor photo
1992 - 1997
Maxxum Series
Utility tractor
Series map:
5140
5150
87.2kw
98.4kw
Transmission options
16-speed four-speed power shift
24-speed creeper
Transmission
Typefour-speed power shift
Gears16 forward and 12 reverse
Four power shift gears in four synchronized ranges with power shuttle.
Speeds
5150 Maxxum  four-speed power shift speeds
Transmission
Typecreeper
Gears24 forward and 20 reverse
Speeds

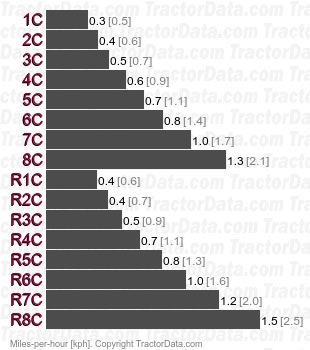

5150 Maxxum  creeper speeds
