Tractors > CaseIH > 5130 Maxxum

CaseIH 5130 Maxxum - transmission

CaseIH 5130 Maxxum tractor photo
1990 - 1997   Maxxum Series
Series next:CaseIH 5140
Series back:CaseIH 5120
more CaseIH 5130 Maxxum specifications...






Transmission:

Type:power shuttle
Gears:16 forward and 12 reverse
Four synchronized gears gears in four synchronized ranges with power shuttle.


Transmission:

Type:four-speed power shift
Gears:16 forward and 12 reverse
Four power shift gears in four synchronized ranges with power shuttle.
Speeds:
5130 Maxxum  four-speed power shift speeds


Transmission:

Type:creeper
Gears:24 forward and 20 reverse
Speeds:

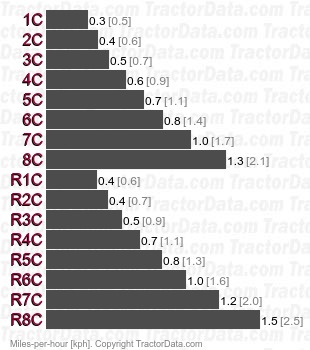

5130 Maxxum  creeper speeds
