Tractors > CaseIH > 5120 Maxxum

CaseIH 5120 Maxxum - transmission

CaseIH 5120 Maxxum tractor photo
1990 - 1997   Maxxum Series
Series next:CaseIH 5130
more CaseIH 5120 Maxxum specifications...






Transmission:

Type:power shuttle
Gears:16 forward and 12 reverse
Four synchronized gears gears in four synchronized ranges with power shuttle.


Transmission:

Type:four-speed power shift
Gears:16 forward and 12 reverse
Four power shift gears in four synchronized ranges with power shuttle.
Speeds:

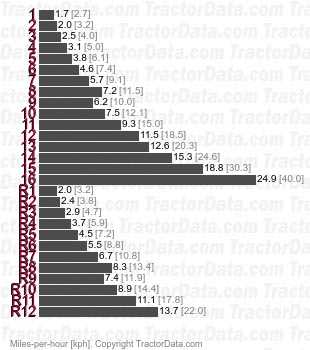

5120 Maxxum  four-speed power shift speeds


Transmission:

Type:creeper
Gears:24 forward and 20 reverse
Speeds:

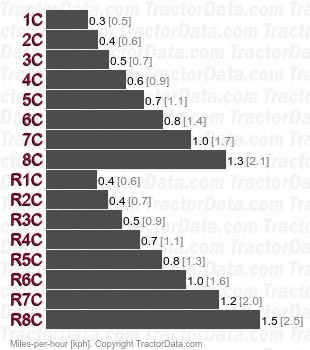

5120 Maxxum  creeper speeds
