Tractors > SAME > Vigneron 75

SAME Vigneron 75 Transmission



SAME Vigneron 75 tractor photo
Vigneron Series
Orchard/Vineyard tractor
Series:Vigneron 62 ← Vigneron 75
Transmissions overview
12-speed partially synchronized
16-speed creeper
Transmission
Type:partially synchronized
Gears:12 forward and reverse
Clutch:mechanical dry disc
Four synchronized gears in three ranges.
Speeds
With 13.6R24 rear tires. Reverse speeds are 5% slower than forward.

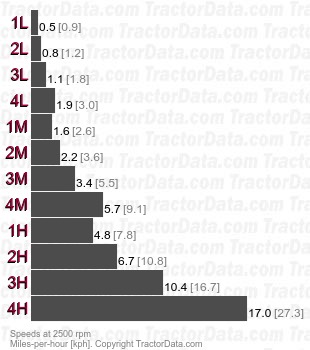

Vigneron 75 partially synchronized speeds
Transmission
Type:creeper
Gears:16 forward and reverse
Speeds
With 13.6R24 rear tires.

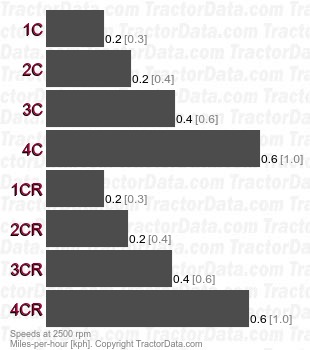

Vigneron 75 creeper speeds
