Tractors > Cletrac > BG

Cletrac BG

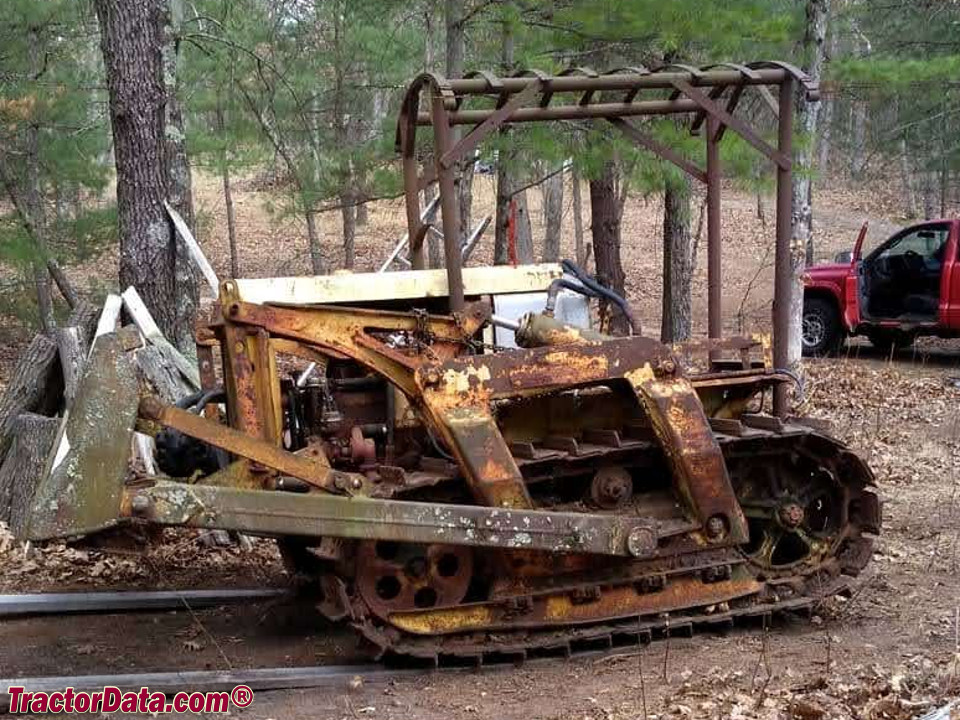

Cletrac BG tractor photo
1937 - 1951
Agricultural Crawler tractor






Production:

Manufacturer:Cletrac
Factory:Cleveland, Ohio, USA


Variants:

BG:gasoline
BD:diesel


Cletrac BG Engine:

   Hercules 4.6L 6-cyl gasoline
full engine details ...


Capacity:



Dimensions & Tires:

Weight:8775 lbs [3980 kg]
full dimensions and tires ...


BG Serial Numbers:

1937: 2C000
1938: 2C452
1939: 2C578
1940: 2C780
1941: 2C338
1942: 2C654
1943: 2C738
1944: -----
1945: 6C0000
1946: 8C370
1947: 9C062
1948: 10C238
1949: 11C458
1950: 11C950
1951: 12C229

how to read serial numbers...



Cletrac BG Power:

Drawbar (claimed):38 hp [28.3 kW]
Belt (claimed):50 hp [37.3 kW]
Plows:4
Drawbar (tested):28.27 hp [21.1 kW]
Belt (tested):39.07 hp [29.1 kW]
power test details ...


Mechanical:

Chassis:crawler
Cab:Open operator station.


Belt Pulley:

Diameter:12 inches [30 cm]
Width:8.5 inches [21 cm]
RPM:1045
Speed:3300 ft/min [1005.84 meters/min]
