Zetor 10050 Transmission


Zetor 10050 tractor photo
2008 - 2011
Silver Series
Series:90501005011050
Transmissions overview
16-speed two-speed power shift
24-speed three-speed power shift
Transmission
Type:two-speed power shift
Gears:16 forward and reverse
Clutch:304.8mm hydraulic cerametallic disc
Synchronized transmission with two-speed push-button power shift and synchronized shuttle.
Speeds
With 18.4R34 rear tires. Reverse speeds are 6% faster than forward.

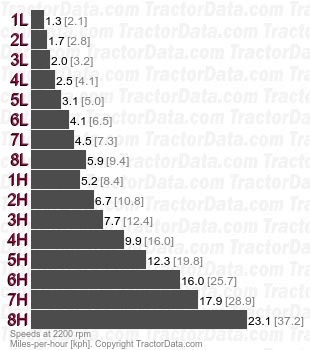

10050  two-speed power shift speeds
Transmission
Type:three-speed power shift
Gears:24 forward and reverse
Clutch:wet disc
Synchronized transmission with three-speed push-button power shift and power shuttle. Electric declutch button.
Speeds
With 18.4R34 rear tires. Reverse speeds are 6% faster than forward.

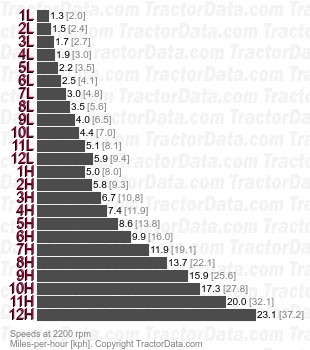

10050  three-speed power shift speeds
