Zetor 9050 - transmission

Zetor 9050 tractor photo
2008 - 2011   Silver Series
Series next:Zetor 10050
Series back:Zetor 9040
more Zetor 9050 specifications...






Transmission:

Type:two-speed power shift
Gears:16 forward and reverse
Clutch:304.8mm hydraulic cerametallic disc
Synchronized transmission with two-speed push-button power shift and synchronized shuttle.
Speeds:With 18.4R34 rear tires. Reverse speeds are 6% faster than forward.

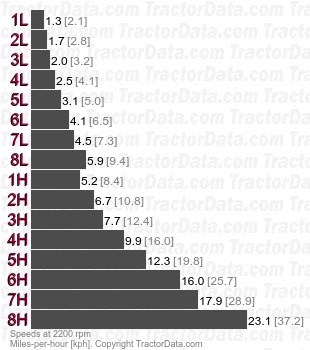

9050  two-speed power shift speeds


Transmission:

Type:three-speed power shift
Gears:24 forward and reverse
Clutch:wet disc
Synchronized transmission with three-speed push-button power shift and power shuttle. Electric declutch button.
Speeds:With 18.4R34 rear tires. Reverse speeds are 6% faster than forward.

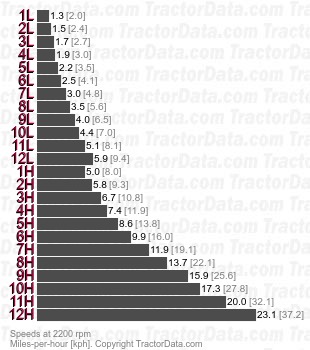

9050  three-speed power shift speeds
