John Deere 5090R

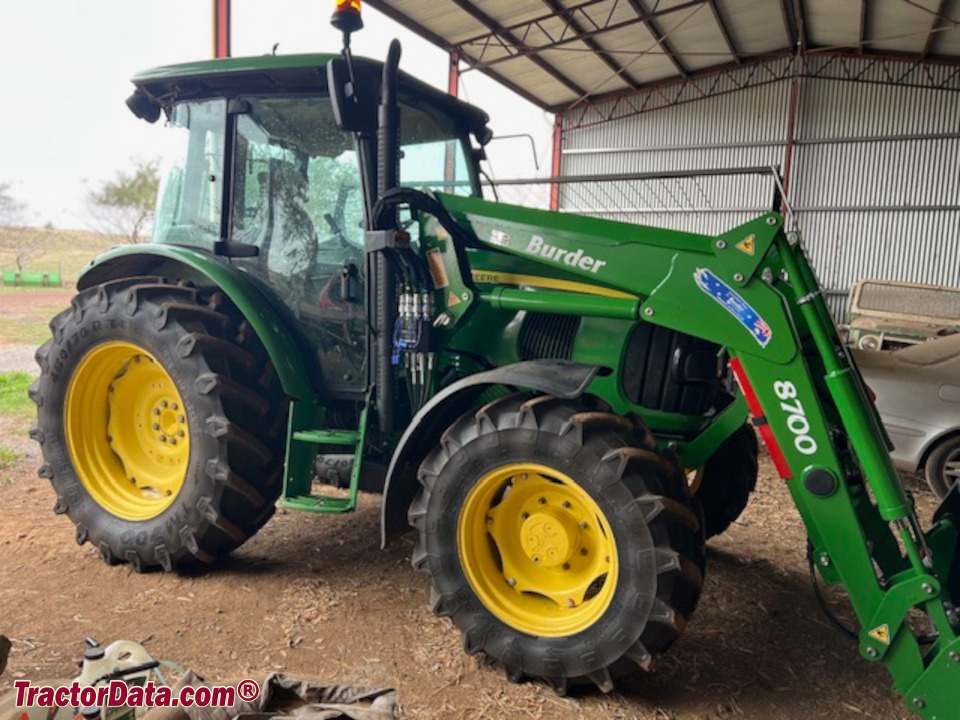

John Deere 5090R tractor photo
2009 - 2023
Model year
5R Series
Utility tractor
Series map:
5090R
5100R
67.1kw
74.6kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price was $90,457 in 2021
John Deere 5090R Engine
John Deere 4.5L 4-cyl diesel
Fuel tank47 gal
177.9 L
Engine details ...
John Deere 5090R Transmissions
16-speed four-speed power shift
32-speed eight-speed power shift
Transmission details ...
John Deere 5090R Power
Engine (gross)90 hp
67.1 kW
Engine (max)100 hp
74.6 kW
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic rear
 limited-slip front
 electro-hydraulic front OptOptional
Power steering
Hydraulic wet disc brakes
Trailer brakeshydraulic OptOptional
 pneumatic OptOptional
Cab standard standard with air-conditioning. Optional panorama roof and mechanical suspension.
Photos
No photos of the John Deere 5090R are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
 load-sensing pressure-flow compensated OptOptional
Rear valves4 OptOptional
Mid valves3 OptOptional
Pump flow25.4 gpm
96.1 lpm
 30.9 gpmOptOptional
117.0 lpm
Tractor hitch
Rear TypeII
Controlelectronic lower-link draft sensing
Rear lift (at 24"/610mm)6069.3 lbs
2753 kg
 6790.2 lbsOptOptional
3080 kg
Front HitchII OptOptional
Front lift (at ends)6292 lbs
2854 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear RPM540/540E/1000 (1.375)
Front PTOindependent OptOptional
Clutchelectro-hydraulic
Front RPM1000
Engine RPM1000@2000
Dimensions & Tires
Wheelbase88.6 inches
225 cm
Weight9480 lbs
4300 kg
Front tire480/65R24
Rear tire540/65R38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Battery CCA550
Battery volts12
References
5090R references literature
5R Series published in 2016, by John Deere
