Tractors > CaseIH > Maxxum 135

CaseIH Maxxum 135 - tests

CaseIH Maxxum 135 tractor photo
2015 -    Maxxum Series
Utility tractor
Series next:CaseIH Maxxum 145
Series back:CaseIH Maxxum 125
more CaseIH Maxxum 135 specifications...






OCED Tractor Test 2973:

Nebraska summary:1095

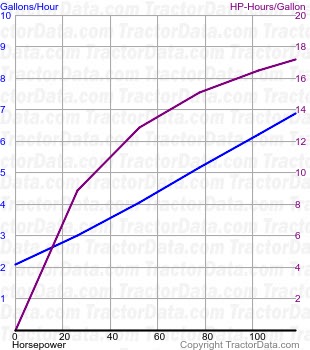

Maxxum 135 fuel use from test 1095
Test Date:April 2016 - May 2016,
Type:Diesel 16-speed 4WD
PTO power (max):131.0 hp [97.7 kW]
PTO fuel use (max):6.9 gal/hour [26.1 l/hour]
PTO power (rated engine speed):117.7 hp [87.8 kW]
PTO fuel use (engine speed):6.9 gal/hour [26.1 l/hour]
PTO power (rated PTO speed):128.3 hp [95.7 kW]
PTO fuel use (PTO speed):7.0 gal/hour [26.5 l/hour]
Drawbar power (max):86.8 hp [64.7 kW]
Drawbar fuel use (max):6.9 gal/hour [26.1 l/hour]
Drawbar pull (max):11130 lbs [5048 kg]
Max pull gear:L6
Test report:PDF file
