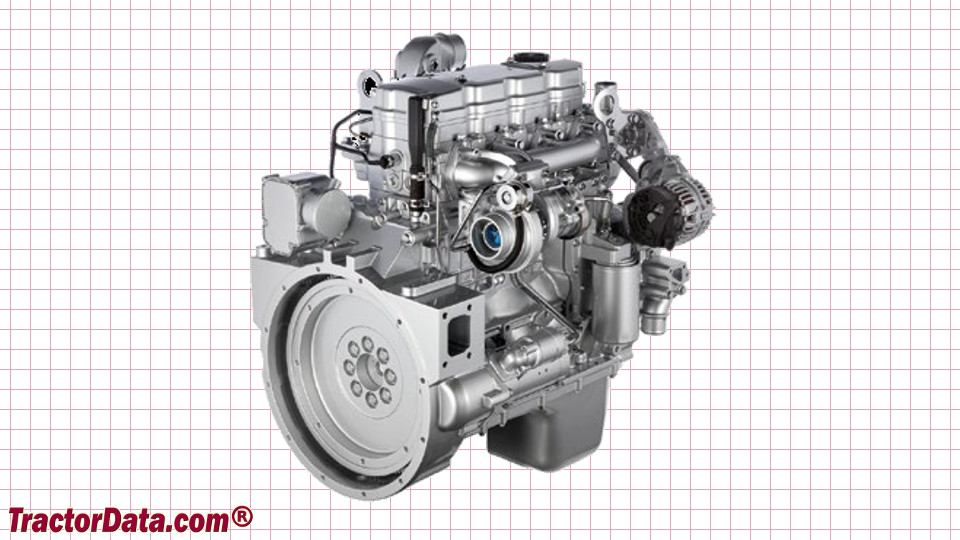

CaseIH Maxxum 135 - engine

CaseIH Maxxum 135 tractor photo
2015 -    Maxxum Series
Utility tractor
Series next:CaseIH Maxxum 145
Series back:CaseIH Maxxum 125
more CaseIH Maxxum 135 specifications...






Engine Detail:

 FPT
 turbocharged air-to-air intercooled diesel
 4-cylinder 16-valve
 liquid-cooled
 274 ci [4.5 L]
Bore/Stroke:4.095x5.20 inches [104 x 132 mm]
Emissions:Tier 4
Emission control:selective catalytic reduction with diesel exhaust fluid
Rated Power (ECE R120):135 hp [100.7 kW]
Maximum Power (ECE R120):169 hp [126.0 kW]
Fuel system:electronic high-pressure common rail
Cooling system:viscous fan
Pre-heating:grid heater
 block heater*Optional
Rated RPM:2200
Starter:electric
Starter volts:12
Oil capacity:16 qts [15.1 L]
