Tractors > Zetor > Proxima Plus 110

Zetor Proxima Plus 110

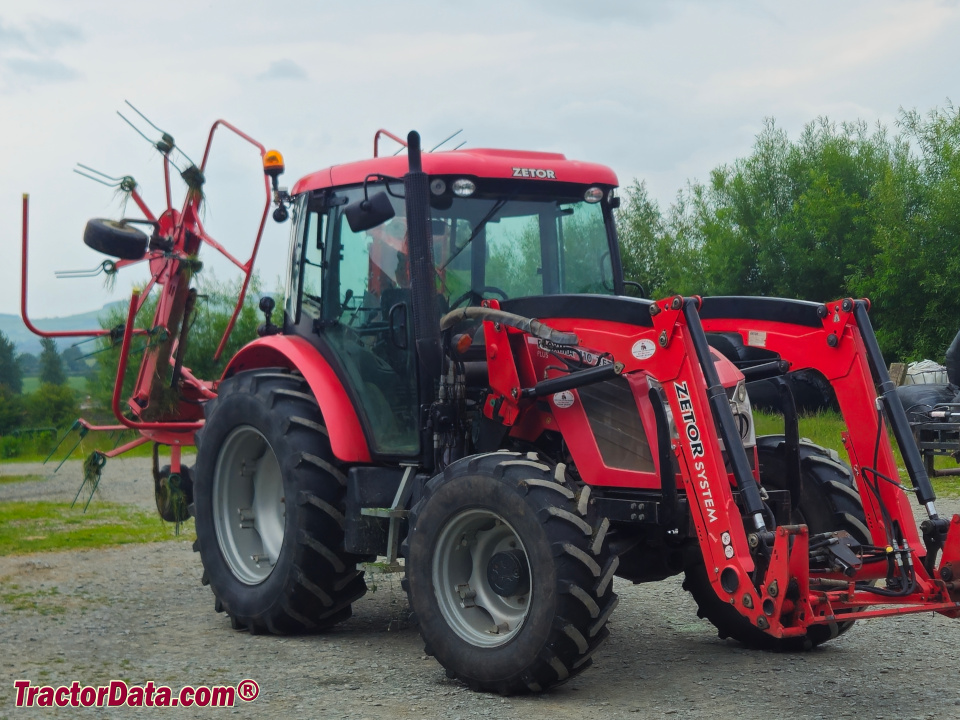

Zetor Proxima Plus 110 tractor photo
2010 - 2016   Proxima Series
Model years
Utility tractor
Previous model:Zetor Proxima Plus 105
Series back:Zetor Proxima Plus 100






Production:

Manufacturer:Zetor
Factory:Brno, Czech Republic


Zetor Proxima Plus 110 Engine:

   Zetor 4.2L 4-cyl diesel
full engine details ...


Capacity:



3-Point Hitch:

Rear Type:II
Control:position control and mechanical top-link draft sensing
Rear lift:9442 lbs [4282 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:wet disc
Rear RPM:540/1000
 540/540E
Front RPM:1000


Dimensions & Tires:

Wheelbase:91.7 inches [232 cm]
Weight:8245 lbs [3739 kg]
Front tire:11.2-24
Rear tire:16.9-30
full dimensions and tires ...


Proxima Plus 110 Serial Numbers:


- Serial numbers unknown -



Zetor Proxima Plus 110 Power:

Engine (net):107 hp [79.8 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:electro-pneumatic
Steering:power
Brakes:hydraulic wet disc
Trailer brakes:pneumatic
 hydraulic*Optional
Cab:Cab standard with optional air-conditioning.


Hydraulics:

Pressure:2756 psi [190.0 bar]
Valves:3
Total flow:13.2 gpm [50.0 lpm]


Electrical:

Charging system:alternator
