| | 1997 - 2001 |
| 4200 Series | | Utility tractor |
|
Series map:
4215
4220
38.8kw
44.7kw
| Transmissions overview |
| 8-speed mechanical shuttle |
| 12-speed synchromesh |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | 305mm dry disc
|
| Four gears (1-4) in two ranges (Low/High) with mechanical shuttle. |
| Speeds |
| With 12.4R32 rear tires. |
|
| Transmission |
| Type | synchromesh
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 305mm dry disc
|
| Three gears (1-3) plus reverse (R) in two ranges (Low/High) with additional two-speed synchronized range shift. |

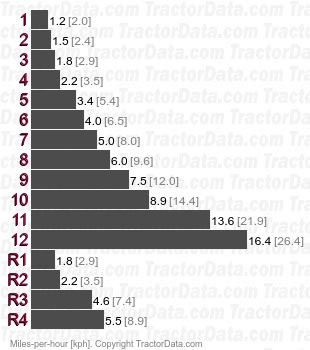

| Speeds |
| With 12.4R32 rear tires. |
|
