New Holland T8.435 Engine


New Holland T8.435 tractor photo
2015 -
T8 Series
Row-Crop tractor
Series map:
T8.410
T8.435
340.0hp
380.0hp
Engine Detail
FPT
variable-geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)380 hp
283.4 kW
Maximum Power (gross)435 hp
324.4 kW
Fuel systemelectronic high-pressure common rail
Cooling systemviscous fan
Rated RPM2000
Starterelectric
Starter volts12
New Holland T8.435 Engine

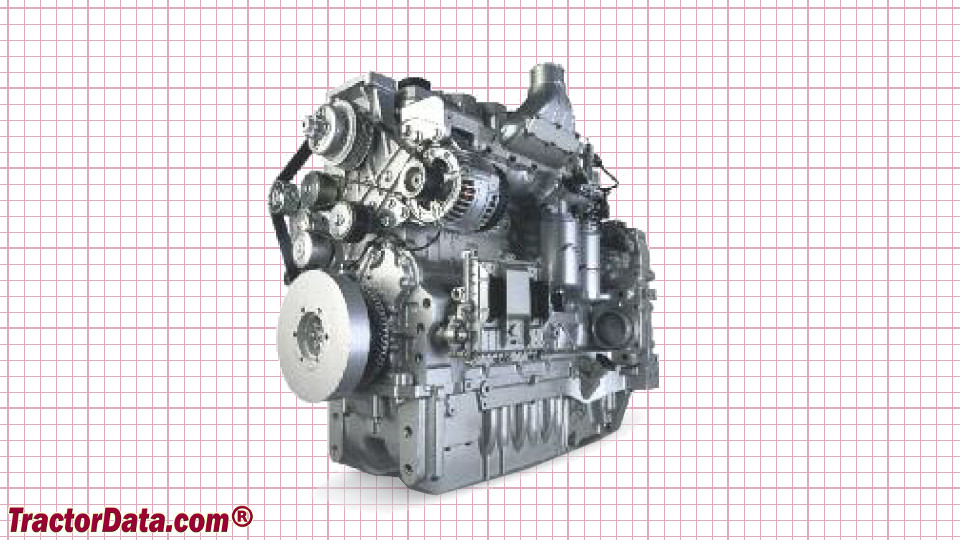

New Holland T8.435 engine image
