Challenger MT555E Tests


Challenger MT555E tractor photo
2015 - 2020
MT500E Series
Row-Crop tractor
Series map:
MT545E
MT555E
MT565E
165.0hp
170.0hp
185.0hp
Tractor Tests
OECD 2948: diesel CVT 4WD
OECD 2946: diesel AutoPower VI 4WD
OCED Tractor Test 2948

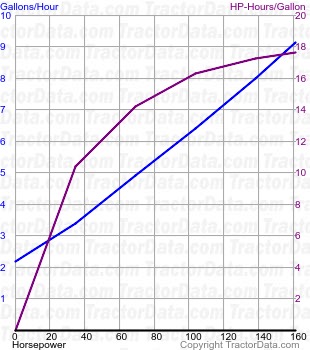

MT555E fuel use from test 1030
OCED Tractor Test 2948
Diesel CVT 4WD
2/2016
Link: OCED Tractor Test 2948 file
PTO performance
Max power184.7 hp
137.7 kW
Fuel use9.8 gal/hour
37.1 l/hour
Power at rated engine speed161.1 hp
120.1 kW
Fuel use9.1 gal/hour
34.4 l/hour
Power at rated PTO speed181.3 hp
135.2 kW
Fuel use9.8 gal/hour
37.1 l/hour
Drawbar performance
Max power129.5 hp
96.6 kW
Fuel use9.4 gal/hour
35.6 l/hour
Pull at 7.71KPH
Max pull16095 lbs
7300 kg
Pull at 2.71KPH
OCED Tractor Test 2946

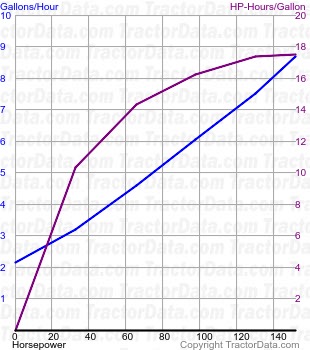

MT555E fuel use from test 1020
OCED Tractor Test 2946
Diesel AutoPower VI 4WD
February 2016 - March 2016,
Link: OCED Tractor Test 2946 file
PTO performance
Max power177.6 hp
132.4 kW
Fuel use9.4 gal/hour
35.6 l/hour
Power at rated engine speed151.8 hp
113.2 kW
Fuel use8.7 gal/hour
32.9 l/hour
Power at rated PTO speed170.3 hp
127.0 kW
Fuel use9.4 gal/hour
35.6 l/hour
Drawbar performance
Max power131.7 hp
98.2 kW
Fuel use8.8 gal/hour
33.3 l/hour
Gear 3A used for power test.
Max pull15825 lbs
7178 kg
Gear 1E used for pull test.
