Challenger MT545E Tests
|
|
| Tractor Tests | |
| OECD 2993: diesel AutoPower VI 4WD | |
| OECD 2990: diesel TechStar CVT 4WD |

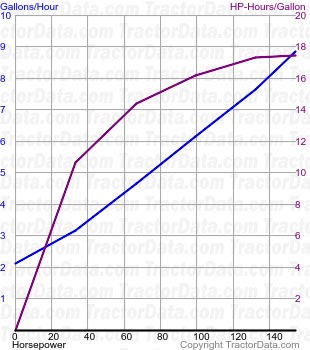

| OCED Tractor Test 2993 | |||
| |||
| OCED Tractor Test 2993 | |
| Diesel AutoPower VI 4WD May 2016 - August 2016, Link: OCED Tractor Test 2993 file | |
| PTO performance | |
| Max power | 165.6 hp 123.5 kW |
| Fuel use | 9.0 gal/hour 34.1 l/hour |
| Power at rated engine speed | 154.1 hp 114.9 kW |
| Fuel use | 8.8 gal/hour 33.3 l/hour |
| Power at rated PTO speed | 161.6 hp 120.5 kW |
| Fuel use | 9.0 gal/hour 34.1 l/hour |
| Drawbar performance | |
| Max power | 138.1 hp 103.0 kW |
| Fuel use | 9.0 gal/hour 34.1 l/hour |
| Gear 3B used for power test. | |
| Max pull | 14075 lbs 6384 kg |
| Gear 1F used for pull test. | |

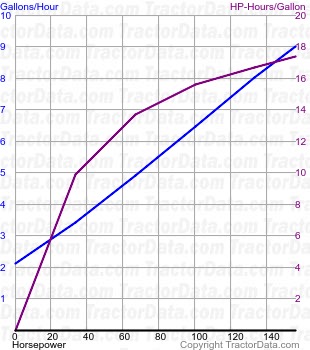

| OCED Tractor Test 2990 | |||
| |||
| OCED Tractor Test 2990 | |
| Diesel TechStar CVT 4WD July 2016 - August 2016, Link: OCED Tractor Test 2990 file | |
| PTO performance | |
| Power at rated engine speed | 156.1 hp 116.4 kW |
| Fuel use | 9.0 gal/hour 34.1 l/hour |
| Power at rated PTO speed | 164.7 hp 122.8 kW |
| Fuel use | 9.1 gal/hour 34.4 l/hour |
| Drawbar performance | |
| Max power | 132.8 hp 99.0 kW |
| Fuel use | 9.2 gal/hour 34.8 l/hour |
| Pull at 10.12KPH | |
| Max pull | 15600 lbs 7076 kg |
| Pull at 4.19KPH | |
