Challenger 1038 Tests


Challenger 1038 tractor photo
2017 - 2021
1000 Series
Row-Crop tractor
Series map:
1038
1042
396.0hp
435.0hp
OCED Tractor Test 3100

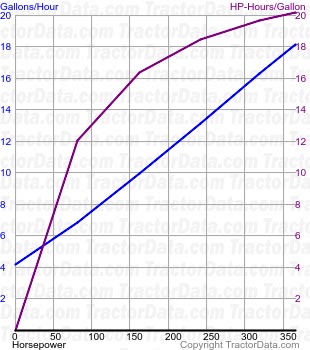

1038 fuel use from test 1147
OCED Tractor Test 3100
Diesel CVT 4WD
July 2017 - August 2017,
Link: OCED Tractor Test 3100 file
PTO performance
Max power368.6 hp
274.9 kW
Fuel use17.7 gal/hour
67.0 l/hour
Power at rated engine speed365.3 hp
272.4 kW
Fuel use18.1 gal/hour
68.5 l/hour
Power at rated PTO speed367.3 hp
273.9 kW
Fuel use17.9 gal/hour
67.8 l/hour
Drawbar performance
Max power316.1 hp
235.7 kW
Fuel use18.5 gal/hour
70.0 l/hour
Pull at 9KPH
Max pull33205 lbs
15061 kg
Pull at 5.25KPH
