John Deere 6130M Transmission


John Deere 6130M tractor photo
2015 - 2022
Model year
6M Series
Utility tractor
6125M
Series:6120M6130M6145M
Transmissions overview
12-speed
16-speed four-speed power shift
24-speed four-speed power shift
Transmission
Transmission:SyncroPlus
Gears:12 forward and 4 reverse
Transmission
Transmission:PowrQuad
Type:four-speed power shift
Gears:16 forward and reverse
Clutch:wet disc
Four power-shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.

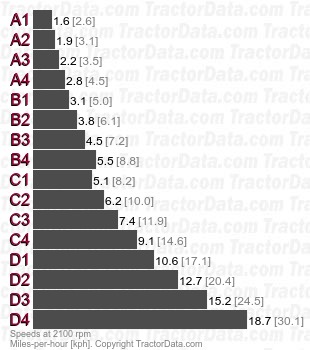

6130M PowrQuad four-speed power shift speeds
Transmission
Transmission:PowrQuad
Type:four-speed power shift
Gears:24 forward and reverse
Clutch:wet disc
Four power-shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle lever. Optional PowrQuad PLUS with push-button gear shift and push-button clutch.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.
6130M PowrQuad four-speed power shift speeds
Transmission
Transmission:AutoQuad PLUS
Type:four-speed power shift
Gears:24 forward and reverse
Clutch:wet disc
Four push-button gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle lever. AutoShift mode enables programmable automatic gear shifting.
Speeds
With 380/85R38 rear tires. Reverse speeds are 4% faster than forward.
6130M AutoQuad PLUS four-speed power shift speeds
