Tractors > Deutz > F4L514 4

Deutz F4L514 4

No photo available
1952 - 1966   FL Series






Production:

Manufacturer:Deutz
Factory:Germany


Variants:

F4L514/4:60 PS
F4L514/5:65 PS


Deutz F4L514 Engine:

   Deutz 5.3L 4-cyl diesel
full engine details ...


Capacity:



Power Take-off (PTO):

Rear RPM:540 (1.375)


Dimensions & Tires:

Wheelbase:96.1 inches [244 cm]
Weight:6669 lbs [3025 kg]
Front tire:6.50-20
Rear tire:13-30
full dimensions and tires ...

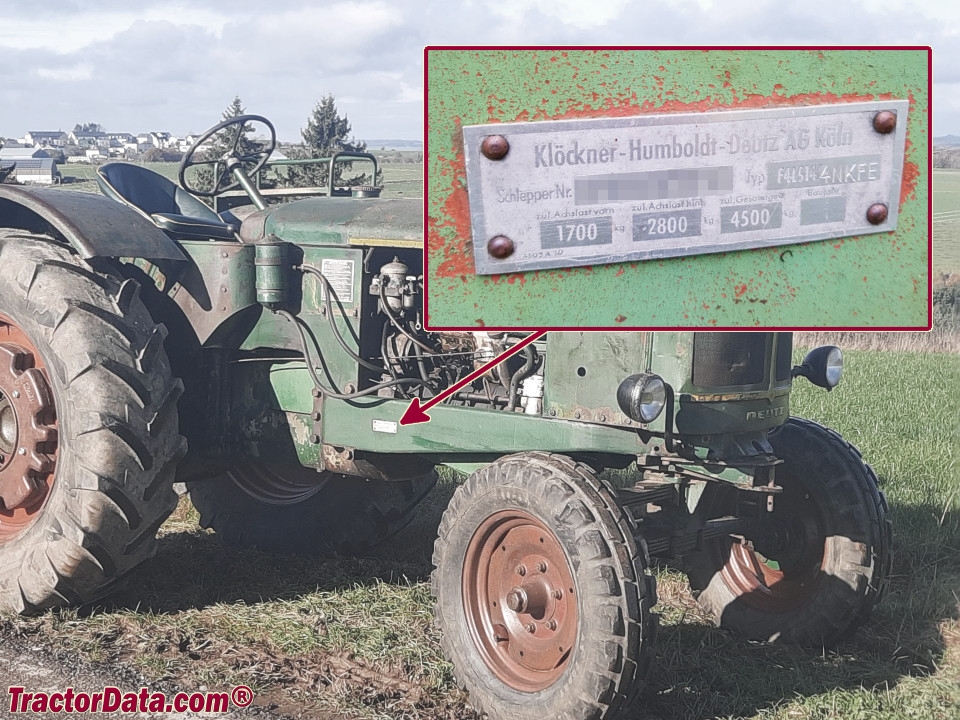

F4L514 Serial Numbers:


- Serial numbers unknown -



Deutz F4L514 Power:

Engine:59.2 hp [44.1 kW]


Mechanical:

Chassis:4x2 2WD
Steering:manual
Brakes:drum
Cab:Open operator station.


Belt Pulley:

Diameter:13.4 inches [34 cm]
Width:8.7 inches [22 cm]
RPM:1390


Battery:

Number:2
Volts:12
