Tractors > Deutz > F2M315

Deutz F2M315

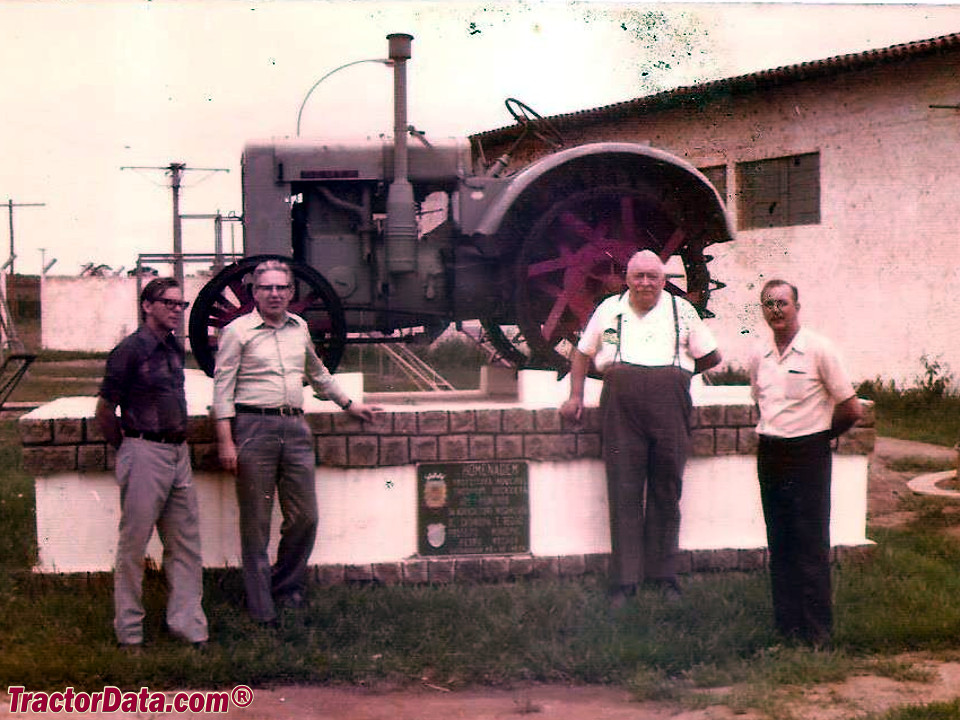

Deutz F2M315 tractor photo
1934 - 1942   FM Series






Production:

Manufacturer:Deutz
Factory:Germany


Deutz F2M315 Engine:

   Deutz 3.4L 2-cyl diesel
full engine details ...


Capacity:

Fuel:19.8 gal [74.9 L]


Power Take-off (PTO):

Rear RPM:540 (1.375)


Dimensions & Tires:

Wheelbase:75.6 inches [192 cm]
Weight:5071 lbs [2300 kg]
Front tire:760x140
Rear tire:1100x270
full dimensions and tires ...


F2M315 Serial Numbers:


- Serial numbers unknown -



Deutz F2M315 Power:

Engine:27.6 hp [20.6 kW]


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Belt Pulley:

Diameter:12.6 inches [32 cm]
Width:7.1 inches [18 cm]
RPM:800
