CaseIH Farmall 120C Tests


CaseIH Farmall 120C tractor photo
2015 -
Farmall C Series
Utility tractor
Series map:
Farmall 110C
Farmall 120C
107.0hp
117.0hp
OCED Tractor Test 3008

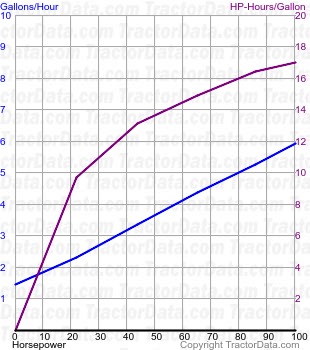

Farmall 120C fuel use from test 1135
OCED Tractor Test 3008
Diesel 12-speed 4WD
April 2016 - 2016,
Link: OCED Tractor Test 3008 file
PTO performance
Max power106.1 hp
79.1 kW
Fuel use5.7 gal/hour
21.6 l/hour
Power at rated engine speed100.3 hp
74.8 kW
Fuel use5.9 gal/hour
22.3 l/hour
Power at rated PTO speed106.1 hp
79.1 kW
Fuel use5.7 gal/hour
21.6 l/hour
Drawbar performance
Max power76 hp
56.7 kW
Fuel use5.7 gal/hour
21.6 l/hour
Gear 4M used for power test.
Max pull6910 lbs
3134 kg
Gear 3M used for pull test.
