Kubota M5-111 Transmission


Kubota M5-111 tractor photo
2015 -
M5 Series
Utility tractor
Series map:
M5-091
M5-111
92.5hp
105.6hp
Transmissions overview
8-speed partially synchronized
12-speed partially synchronized
24-speed two-speed power shift
Transmission
Typepartially synchronized
Gears8 forward and reverse
Clutchwet disc
Oil capacity63.4 qts
60.0 L
Four synchronized gears in two ranges with electro-hydraulic shuttle shift.
Speeds
With 18.4-30 rear tires.

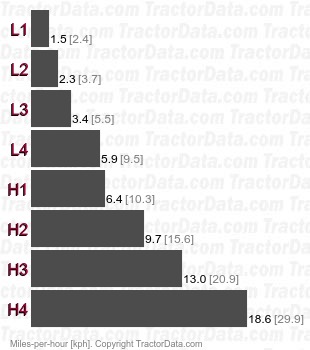

M5-111  partially synchronized speeds
Transmission
Typepartially synchronized
Gears12 forward and reverse
Clutchwet disc
Six synchronized gears in two ranges with electro-hydraulic shuttle shift.
Speeds
With 18.4-30 rear tires.

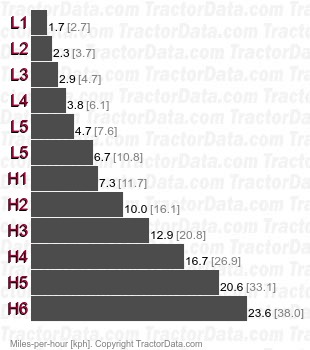

M5-111  partially synchronized speeds
Transmission
Typetwo-speed power shift
Gears24 forward and reverse
Clutchwet disc
Six synchronized gears in two ranges with electro-hydraulic shuttle shift. Two-speed power shift.
Speeds
With 18.4-30 rear tires.

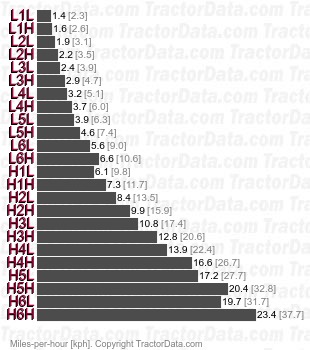

M5-111  two-speed power shift speeds
