Farmall Super M-TA Engine
|
|
| Engine options | |
| International Harvester 4.3L 4-cyl gasoline | |
| International Harvester 4.3L 4-cyl LP gas |
| Engine Detail | |
| International Harvester C264 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement | 264 ci 4.3 L |
| Bore/Stroke | 4.00x5.25 inches 102 x 133 mm |
| Fuel use | 3.657 gal/hour 13.8 l/hour |
| Air cleaner | oil bath |
| Compression | 5.9:1 |
| Rated RPM | 1450 |
| Idle RPM | 400-1600 |
| Firing order | 1-3-4-2 |
| Starter volts | 6 |
| Coolant capacity | 26 qts 24.6 L |
| Sparkplug gap | 0.023 inches 0.584 mm |
| Intake valve clearance | 0.017 inches*Hot 0.432 mm |
| Exhaust valve clearance | 0.017 inches*Hot 0.432 mm |

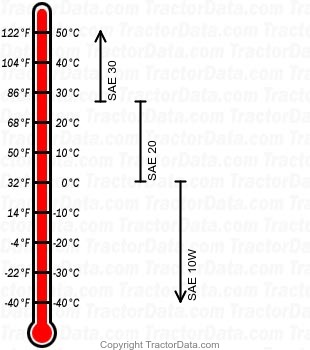

| Engine Oil | |
| |
| Oil capacity | 8 qts 7.6 L |
| Engine Detail | |
| International Harvester | |
| LP gas | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement | 264 ci 4.3 L |
| Bore/Stroke | 4.00x5.25 inches 102 x 133 mm |
| Fuel use | 5.211 gal/hour 19.7 l/hour |
| Air cleaner | oil bath |
| Compression | 6.75:1 |
| Rated RPM | 1450 |
| Firing order | 1-3-4-2 |
| Starter volts | 6 |
