David Brown 1690 - tests

David Brown 1690 tractor photo
1980 - 1984
Utility tractor
more David Brown 1690 specifications...

Note: the David Brown model 1690 is the same as the J.I. Case 1690. The following data is from the 1690 listing.

Nebraska Tractor Test 1383:

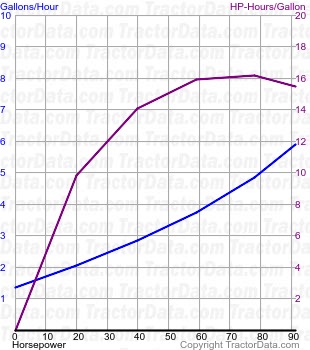

1690 fuel use from test 1383
Test Date:March 27 - April 21, 1981
Type:Diesel 12-speed synchro 4WD
PTO power (rated engine speed):90.39 hp [67.4 kW]
PTO fuel use (engine speed):5.8 gal/hour [22.0 l/hour]
PTO power (rated PTO speed):87.76 hp [65.4 kW]
PTO fuel use (PTO speed):5.5 gal/hour [20.8 l/hour]
Drawbar power (max):72.55 hp [54.1 kW]
Drawbar fuel use (max):5.5 gal/hour [20.8 l/hour]
Drawbar pull (max):10536 lbs [4779 kg]
Max pull gear:3-1
Test report:PDF file
