CaseIH 685XL - transmission

CaseIH 685XL tractor photo
1985 - 1990   85 Series
Utility tractor
Series next:CaseIH 785XL
Series back:CaseIH 585XL
more CaseIH 685XL specifications...






Transmission:

Type:synchromesh
Gears:8 forward and 4 reverse
Clutch:304mm dry disc
Four synchronized gears in two ranges, plus reverse range.
Speeds:
685XL  synchromesh speeds


Transmission:

Transmission:Torque Amplifier
Type:two-speed power shift
Gears:16 forward and 8 reverse
Clutch:304mm dry disc
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. Two-speed torque amplifier provides an on-the-move shift to a lower speed.
Speeds:

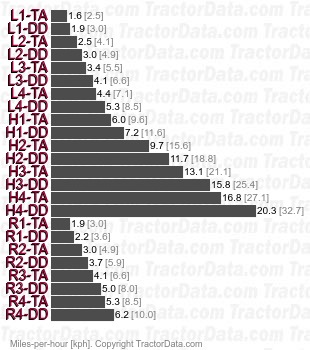

685XL Torque Amplifier two-speed power shift speeds
