TractorData.com - information on all makes and models of tractors
Tractors > Cub Cadet > 7284

Cub Cadet 7284 - engine

Cub Cadet 7284 tractor photo
2004 - 2004   7000 Series
Compact Utility tractor
more Cub Cadet 7284 specifications...

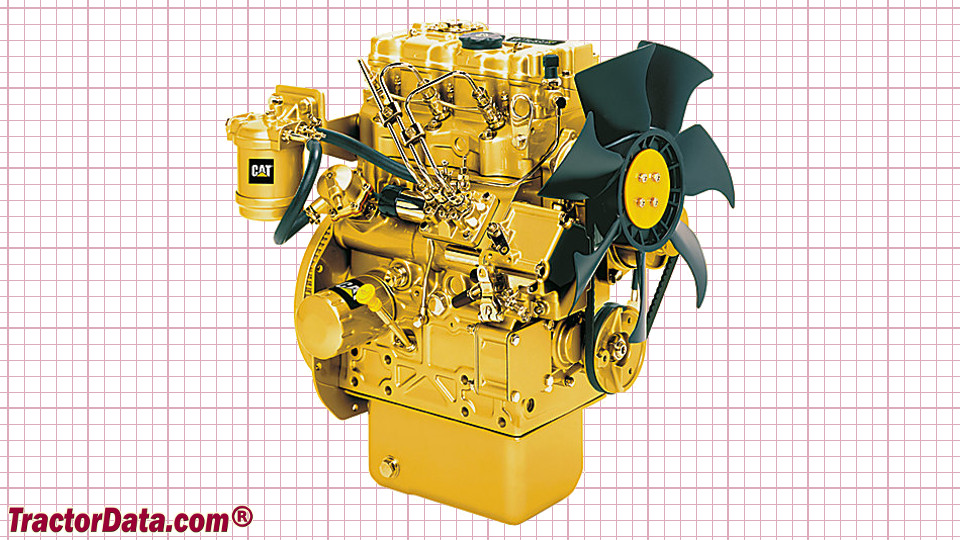

Engine Detail:

 Caterpillar
 diesel
 3-cylinder
 liquid-cooled
 69 ci [1.1 L]
Bore/Stroke:3.03x3.19 inches [77 x 81 mm]
Power:28 hp [20.9 kW]
Fuel system:indirect injection
Compression:23:1
Rated RPM:3400
Idle RPM:1200-3400
Starter:electric
Starter volts:12
Oil capacity:5.2 qts [4.9 L]
Oil change:250 h
Coolant capacity:5.5 qts [5.2 L]
Intake valve clearance:0.008 inches [0.203 mm] *Cold
Exhaust valve clearance:0.008 inches [0.203 mm] *Cold
