| | 2003 - 2008 |
| Utility tractor | | Carraro built |
|
| Transmissions overview |
| 12-speed partially synchronized |
| 24-speed partially synchronized |
| 24-speed two-speed power shift |
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and reverse
|
| Clutch | dry disc
|
| Four gears (1-4) in three ranges (A, B, C) with mechanical shuttle. Gear shifts are synchronized. |

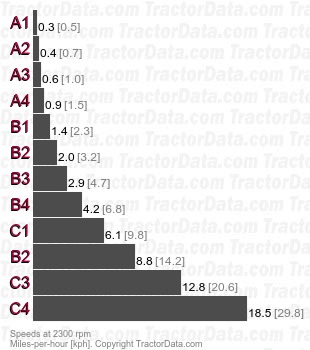

| Speeds |
| With 15.5R38 rear tires. Reverse speeds are about 15% slower than foward. |
|
| Transmission |
| Type | partially synchronized
|
| Gears | 24 forward and reverse
|
| Clutch | dry disc
|
| Mechanical high-low added to base 12-speed transmission. |
| Transmission |
| Type | two-speed power shift
|
| Gears | 24 forward and 12 reverse
|
| Clutch | hydraulic
|
| Four gears (1-4) in three ranges (A, B, C) and electronically-shifted high/low. Left-hand power shuttle lever and push-button high/low shift. Push-button electric declutch button on gear shift allows for gear changes without foot clutch. |
