John Deere 5515 Hi-Crop Engine


John Deere 5515 Hi-Crop tractor photo
2003 - 2008
Utility tractor
Carraro built
Engine Detail
John Deere 4045TAT70
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Rated Power (ECE R24)80 hp
59.7 kW
Rated Power (EC 97/98)82 hp
61.1 kW
Compression17:1
Rated RPM2300
Idle RPM825-2510
Operating RPM1200-2300
Torque231.6 lb-ft
314.0 Nm
Torque RPM1500
Firing order1-3-4-2
Starterelectric
Starter volts12
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

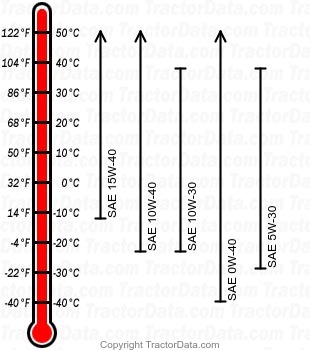

5515 Hi-Crop diesel engine oil chart
Oil capacity8.5 qts
8.0 L
