Tractors > John Deere > 7310R

John Deere 7310R - engine

John Deere 7310R tractor photo
2014 -    7R Series
Row-Crop tractor
Series back:John Deere 7290R
more John Deere 7310R specifications...






Engine Detail:

 John Deere PowerTech PSS
 dual turbochargers diesel
 6-cylinder 24-valve
 liquid-cooled inline
 549 ci [9.0 L]
Bore/Stroke:4.66x5.35 inches [118 x 136 mm]
Emissions:Stage IV
Rated Power (ECE R24):298 hp [222.2 kW]
Rated Power (EC 97/98):310 hp [231.2 kW]
Maximum Power (ECE R24):338.2 hp [252.2 kW]
Maximum Power (EC 97/68):352 hp [262.5 kW]
Fuel system:electronic high-pressure common rail
Compression:16:1
Rated RPM:2100
Operating RPM:1550-2100
Torque:1070.9 lb-ft [1452.1 Nm]
Torque RPM:1600
Starter:electric
Starter volts:12

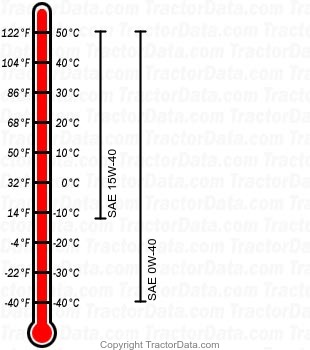

Oil capacity:28.5 qts [27.0 L]
Oil change:500 h
Coolant capacity:47 qts [44.5 L]
