Tractors > New Holland > T9.480

New Holland T9.480 Tests



New Holland T9.480 tractor photo
2014 - 2023
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
T9.435
T9.480
T9.530
370.0hp
420.0hp
470.0hp
OCED Tractor Test 2093A

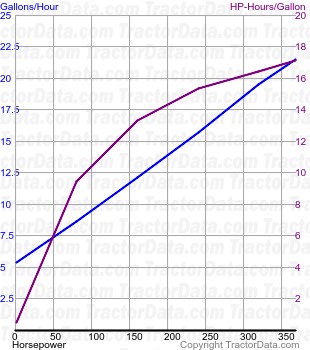

T9.480 fuel use from test 958A
OCED Tractor Test 2093A
Diesel 16-speed 4WD
September 23 - October 1, 2014
Link: OCED Tractor Test 2093A file
PTO performance
Max power413.44 hp
308.3 kW
Fuel use22.5 gal/hour
85.2 l/hour
Power at rated engine speed367.38 hp
274.0 kW
Fuel use21.5 gal/hour
81.4 l/hour
Power at rated PTO speed407.49 hp
303.9 kW
Fuel use21.7 gal/hour
82.1 l/hour
Drawbar performance
Max power340.86 hp
254.2 kW
Fuel use21.4 gal/hour
81.0 l/hour
Gear 4 used for power test.
Max pull41762 lbs
18943 kg
Gear 1 used for pull test.
