John Deere 5065E

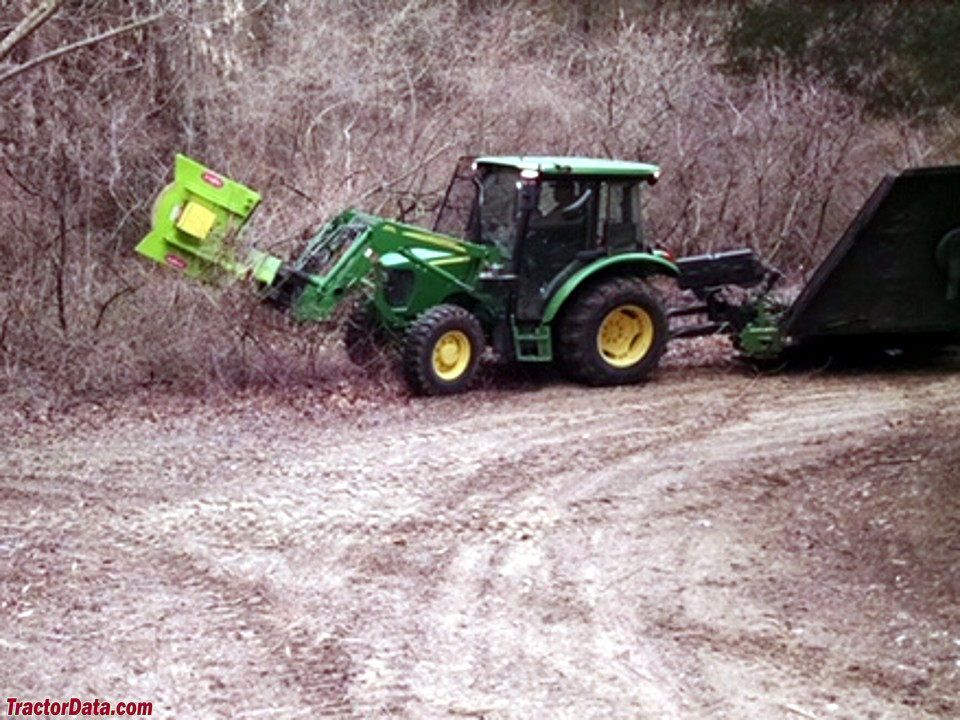

John Deere 5065E tractor photo
2008 - 2022
Model year
5E Series
Utility tractor
Series map:
5055E
5065E
5075E
59.0hp
67.0hp
73.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Pune, Maharashtra, India
Original price$24,836 (2017 )
$27,661 (2021 )
John Deere 5065E Engine
John Deere 2.9L 3-cyl diesel
ROPS Fuel tank18 gal
68.1 L
Cab Fuel tank21.6 gal
81.8 L
Engine details ...
John Deere 5065E Transmissions
9-speed partially synchronized
12-speed partially synchronized power shuttle
Transmission details ...
John Deere 5065E Power
Engine (gross)67 hp
50.0 kW
ROPS PTO (claimed)53 hp
39.5 kW
Cab PTO (claimed)49 hp
36.5 kW
PTO (tested)61.50 hp
45.9 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional.
Hydraulics
Typeopen center
Valves1 or 2
Pump flow11.4 gpm
43.1 lpm
Total flow18.2 gpm
68.9 lpm
Steering flow6.8 gpm
25.7 lpm
Tractor hitch
Rear TypeII
Controlposition and top-link draft control
Rear lift (at ends)3968 lbs
1799 kg
Rear lift (at 24"/610mm)3192 lbs
1447 kg
Rear Armsfixed
 telescopic draft links OptOptional
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540
Engine RPM540@2083
540E@1588
Dimensions & Tires
Wheelbase80.7 inches
204 cm
Weight4634 to 7165 pounds
Front tire7.5-16
2WD Rear tire16.9-28
Full dimensions and tires ...
5065E Serial Numbers
Location:Serial number plate on the side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps70
Cab Charging amps110
ROPS Battery CCA622
Cab Battery CCA925
Battery volts12
ROPS Battery AH80
Cab Battery AH95
References
5065E references literature
5E Utility Tractors published in 2018, by John Deere
5E Utility Tractors published in 2018, by John Deere
5E Utility Tractors published in 2019, by John Deere
