John Deere 5410 - transmission

John Deere 5410 tractor photo
2000 - 2002
Utility tractor
Previous model:John Deere 5400
Next model:John Deere 5415
Series next:John Deere 5510
Series back:John Deere 5310
more John Deere 5410 specifications...






Transmission:

Type:partially synchronized
Gears:12 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range or direction.
Speeds:With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

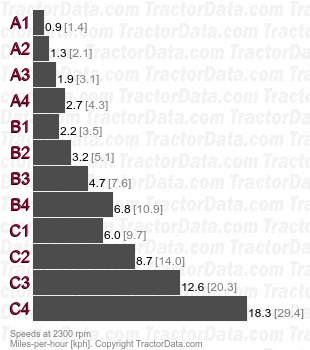

5410  partially synchronized speeds


Transmission:

Type:partially synchronized
Gears:24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and Hi-Lo shift. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range, direction, or Hi-Lo.
Speeds:With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

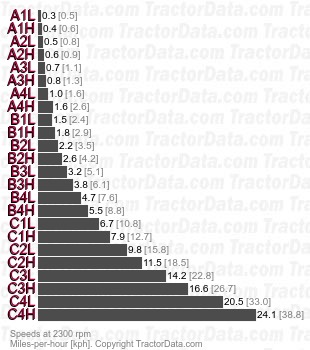

5410  partially synchronized speeds


Transmission:

Type:two-speed power shift
Gears:24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and push-button Electro-Hydraulic Hi-Lo. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range ordirection.
Speeds:With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.
5410  two-speed power shift speeds
