| | 2002 - 2009 |
|
| JX Series | | Utility tractor | | Turk Tractor built |
|
Series map:
JX85
JX95
85.0hp
93.0hp
| Transmissions overview |
| 12-speed mechanical shuttle |
| 20-speed creeper |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 12 forward and reverse
|
| Four gears (1-4) in three ranges with mechanical shuttle. |

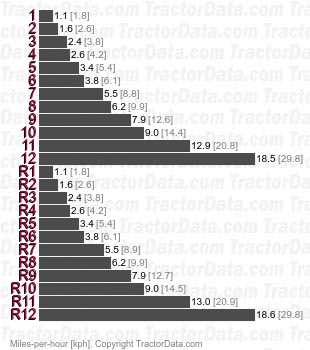

| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 20 forward and 12 reverse
|
