| | 2014 - |
| Compact Utility tractor |
|
| Transmission |
| Type: | syncronized shuttle
|
| Gears: | 16 forward and reverse
|
| Clutch: | dry disc
|
| Oil capacity: | 37 qts
35.0 L
|
| Four gears (1-4) in four ranges (LL, low, medium, high) with mechanical left hand reverser lever. Gears shifts and shuttle shifts are synchronized, using the clutch. |

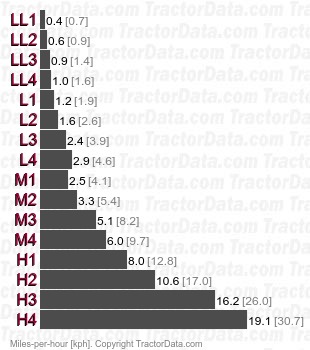

| Speeds |
| Reverse speeds are about 15% slower than forward. |
|
