Tractors > Allis Chalmers > H3

Allis Chalmers H3 - transmission

Allis Chalmers H3 tractor photo
1960 - 1967
Agricultural Crawler tractor
more Allis Chalmers H3 specifications...






Transmission:

Transmission:Power Director
Type:two-speed power shift
Gears:8 forward and 2 reverse
Clutch:wet disc (Power Director)
 dry disc (gear)
Four gears (1-4) plus reverse (R) with two-speed high/low power shift.
Speeds:
H3 Power Director two-speed power shift speeds


Transmission:

Type:mechanical shuttle
Gears:4 forward and reverse
Speeds:

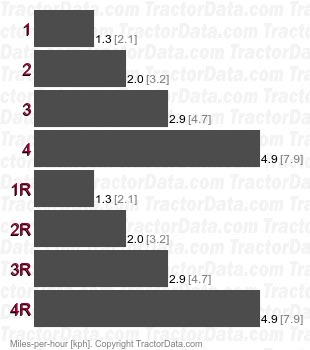

H3  mechanical shuttle speeds
