Allis Chalmers H3 Tests


Allis Chalmers H3 tractor photo
1960 - 1967
Agricultural Crawler tractor
Nebraska Tractor Test 793

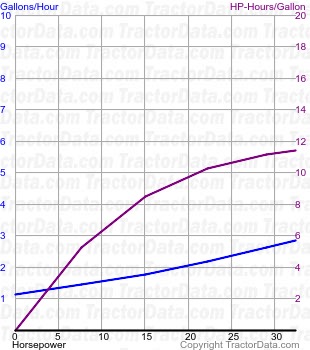

H3 fuel use from test 793
Nebraska Tractor Test 793
Gasoline 8-speed crawler
May 12 - 25, 1961
Link: Nebraska Tractor Test 793 file
PTO performance
Power at rated engine speed32.11 hp
23.9 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power25.48 hp
19.0 kW
Fuel use2.9 gal/hour
11.0 l/hour
Gear 2H used for power test.
Max pull7893 lbs
3580 kg
Gear 1L used for pull test.
