John Deere 9520R Transmission


John Deere 9520R tractor photo
2015 - 2021
9R Series
Four-wheel Drive (4WD) tractor
Series map:
9470R
9520R
9570R
470.0hp
520.0hp
570.0hp
Transmission
Transmissione18 PowerShift
Typefull power shift
Gears18 forward and 6 reverse
Oil capacity232.5 qts
220.0 L
 239.9 qts*With hitch and PTO
227.0 L

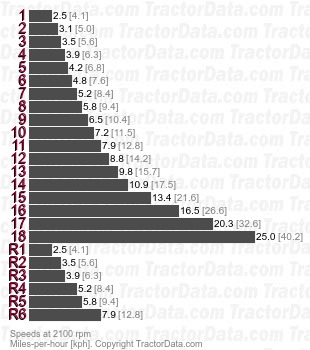

Speeds
With group 47 (710/70R38) tires.
9520R e18 PowerShift full power shift speeds
