John Deere 720 Standard Transmission


John Deere 720 Standard tractor photo
1956 - 1958
Two-Cylinder 20 Series
Standard-tread tractor
70 Standard
Series:620 Standard720 Standard
Transmission
Manufacturer:John Deere
Type:unsynchronized gear
Gears:6 forward and 1 reverse
Clutch:dry
Oil capacity:30 qts
28.4 L
Oil type:
0oF [-17oC] : SAE 90
0oF [-17oC] : SAE 80

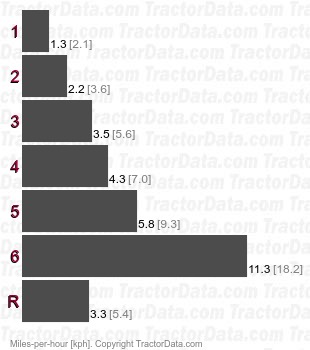

Speeds
With 13.6-38 rear tires.
720 Standard  unsynchronized gear speeds
