Tractors > CaseIH > 3294

CaseIH 3294 - tests

CaseIH 3294 tractor photo
1985 - 1986
Row-Crop tractor
Previous model:J.I. Case 3294
Series next:CaseIH 3394
more CaseIH 3294 specifications...





Note: the CaseIH model 3294 is the same as the J.I. Case 3294. The following data is from the 3294 listing.


Nebraska Tractor Test 1528:

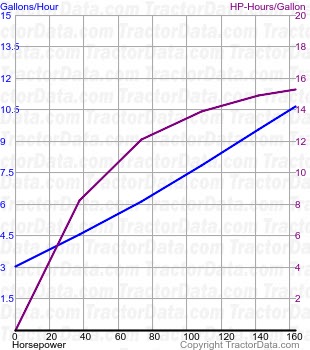

3294 fuel use from test 1528
Test Date:June 12 - 22, 1984
Type:Diesel 12-speed 4WD
PTO power (rated engine speed):162.63 hp [121.3 kW]
PTO fuel use (engine speed):10.6 gal/hour [40.1 l/hour]
Drawbar power (max):140.79 hp [105.0 kW]
Drawbar fuel use (max):10.4 gal/hour [39.4 l/hour]
Drawbar pull (max):16242 lbs [7367 kg]
Max pull gear:1-2
Test report:PDF file
