Massey-Harris 101S Super

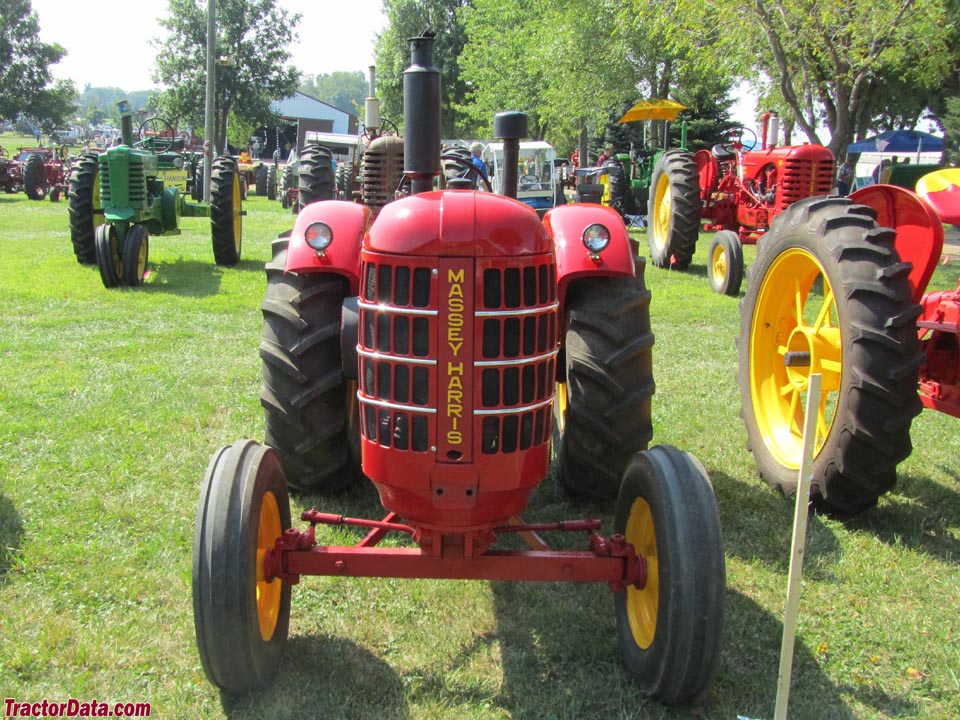

Massey-Harris 101S Super tractor photo
1938 - 1942
Standard-tread tractor





The Massey-Harris 101 Super was originally released as simply the 101. When the 101 Junior was released in 1939, this tractor was named the 101 Super. It was one of the first production tractors to have electric starting as a standard feature. The 101 Super was followed by the 101 Senior, which used a Continental engine.


Production:

Manufacturer:Massey-Harris
Total built:8,647
Original price (USD):$1,700 (1946)


Variants:

101S:standard
101R:row-crop


Massey-Harris 101S Super Engines:

   Chrysler 3.3L 6-cyl gasoline
   Chrysler 3.6L 6-cyl gasoline
full engine details ...


Capacity:

Fuel:15 gal [56.8 L]


Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Weight:3865 lbs [1753 kg]
Front tire:6.00-16
Rear tire:12.75-24
full dimensions and tires ...


101S Super Serial Numbers:

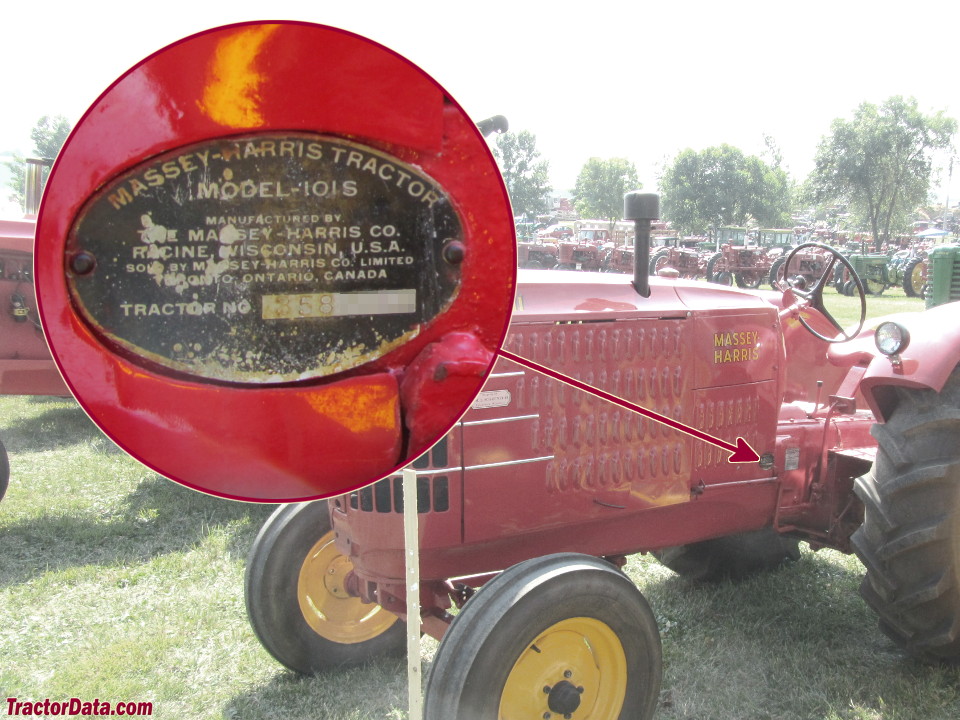

Location:On frame, rear-left side near transmission case

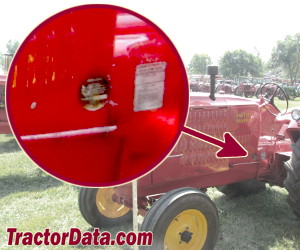

photo of 101S Super serial number

1938: 355001
1939: 355603
1940: 356792
1941: 358188
1942: 358869

how to read serial numbers...



Massey-Harris 101S Super Power:

Drawbar (claimed):24 hp [17.9 kW] (early)
 28 hp [20.9 kW] (late)
PTO (claimed):36 hp [26.8 kW] (early)
 41 hp [30.6 kW] (late)
Drawbar (tested):30.80 hp [23.0 kW]
Belt (tested):40.04 hp [29.9 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:manual
Brakes:mechanical internal expanding
Cab:Open operator station.


Belt Pulley:

Diameter:13.25 inches [33 cm]
Width:6.25 inches [15 cm]
RPM:833


Battery:

Number:1
Volts:6
