CaseIH Magnum 380 Engine


CaseIH Magnum 380 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 340
Magnum 380
340.0hp
380.0hp
Engine Detail
FPT
wastegate turbocharger diesel
6-cylinder 24-valve
liquid-cooled
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)380 hp
283.4 kW
Maximum Power (gross)415 hp
309.5 kW
 435 hp (boost)
324.4 kW
Fuel systemelectronic high pressure common rail direct injection
Cooling systemBorgWarner Visctronic  fan
Rated RPM2000
Starterelectric
Starter volts12
CaseIH Magnum 380 Engine

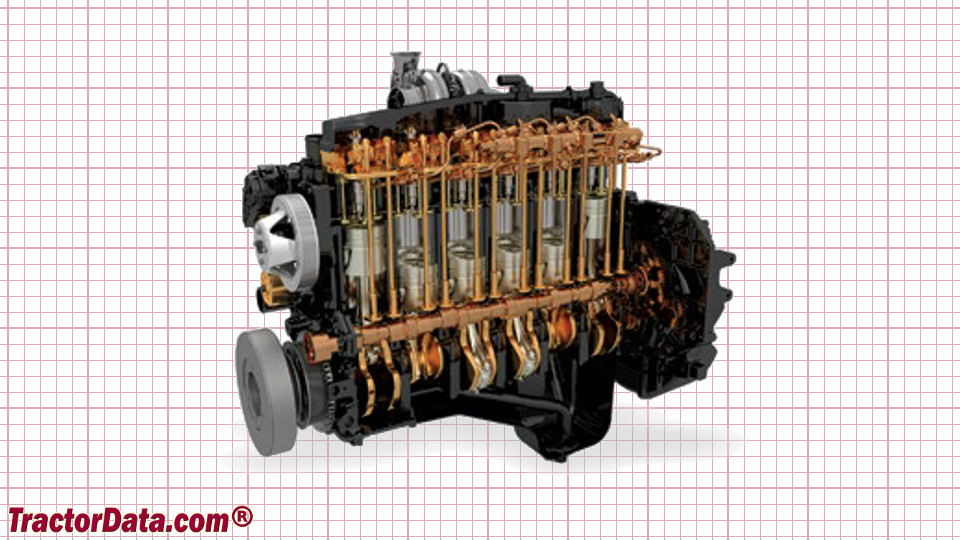

CaseIH Magnum 380 engine image
