CaseIH Magnum 340 Engine


CaseIH Magnum 340 tractor photo
2011 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 310
Magnum 340
Magnum 380
310.0hp
340.0hp
380.0hp
Engine Detail
FPT
wastegate turbocharger diesel
6-cylinder 24-valve
liquid-cooled
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)340 hp
253.5 kW
Maximum Power (gross)375 hp
279.6 kW
 410 hp (boost)
305.7 kW
Fuel systemelectronic high pressure common rail direct injection
Cooling systemBorgWarner Visctronic  fan
Rated RPM2000
Starterelectric
Starter volts12

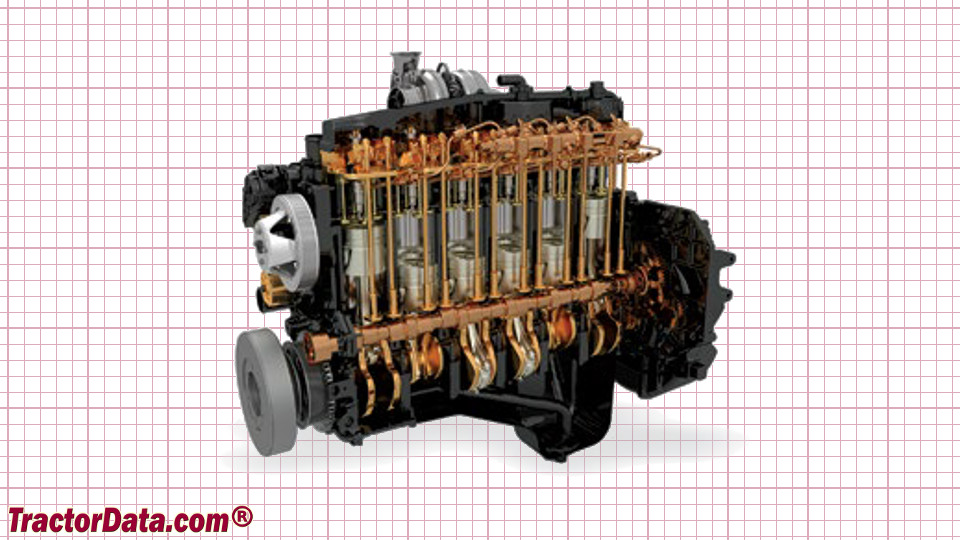

CaseIH Magnum 340 Engine
CaseIH Magnum 340 engine image
