Versatile 305 Engine
|
|
| Engine Detail | |

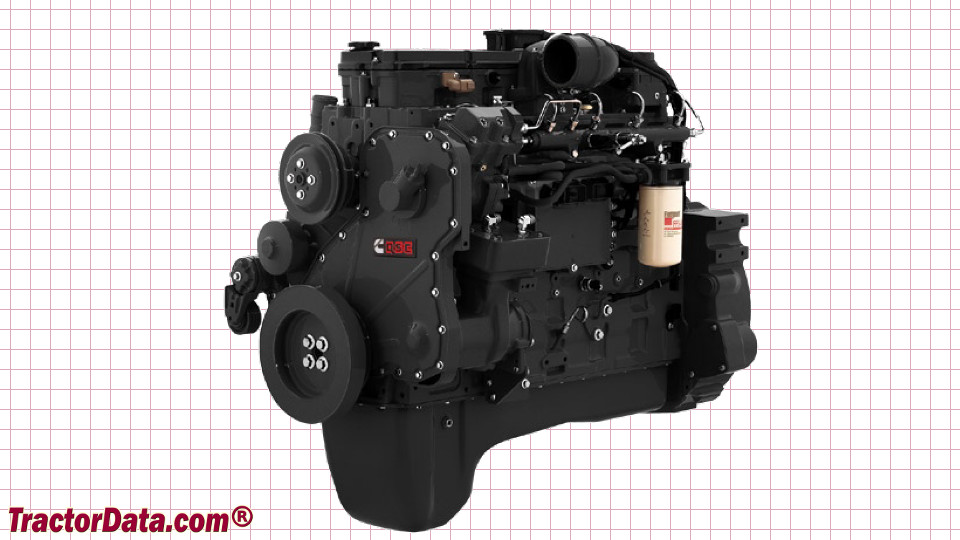

| Cummins QSC | |
| turbocharged and air-to-air aftercooled diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| Displacement | 506 ci 8.3 L |
| Bore/Stroke | 4.488x5.315 inches 114 x 135 mm |
| Emissions | Tier III |
| Power | 305 hp 227.4 kW |
| Rated RPM | 2100 |
| Torque | 1020 lb-ft 1383.1 Nm |
| Torque RPM | 1500 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 20 qts 18.9 L |
| Coolant capacity | 29 qts 27.4 L |
| Versatile 305 Engine | |
 |
