Versatile 375

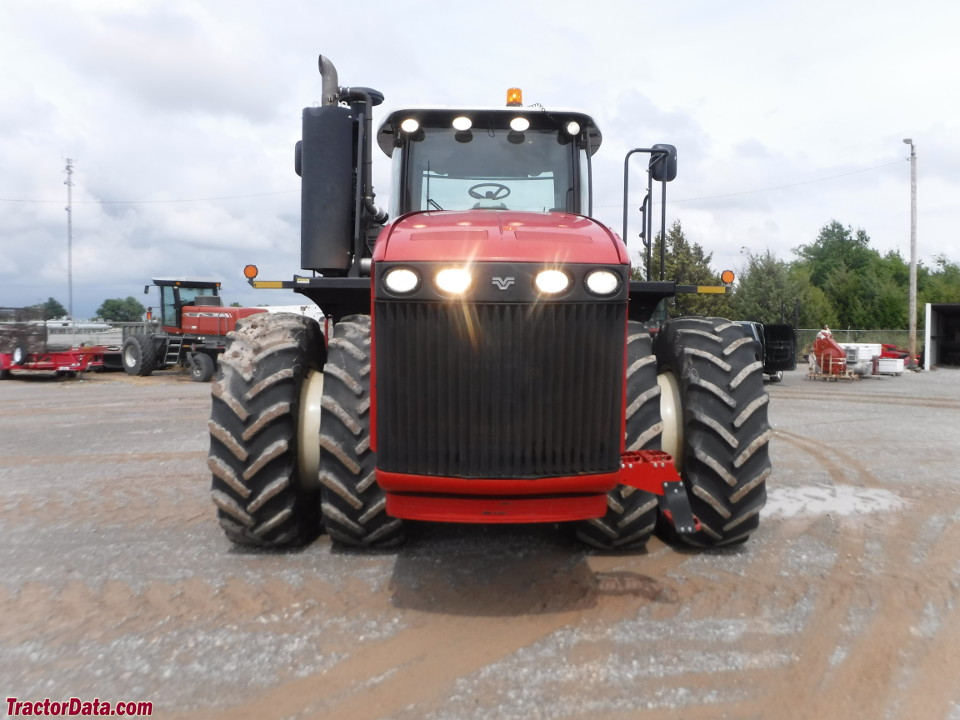

Versatile 375 tractor photo
2008 - 2017
Model year
Four-wheel Drive (4WD) tractor
Series map:
350
375
400
350.0hp
375.0hp
400.0hp
Production
ManufacturerVersatile (a part of Rostselmash)
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Versatile 375 Engine
Cummins 11.9L 6-cyl diesel
Fuel tank300 gal
1135.5 L
Engine details ...
Versatile 375 Transmissions
12-speed partiallly synchronized
16-speed full power shift
Transmission details ...
Versatile 375 Power
Engine375 hp
279.6 kW
PTO (claimed)300 hp
223.7 kW
Drawbar (tested)291.1 hp
217.1 kW
PTO (tested)358.97 hp
267.7 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Differential lockoptional
Steeringhydrostatic power
Single dry caliper brakes
Cab standard with air-conditioning.
Hydraulics
Typeclosed center load sensing (CCLS)
Pressure2900 psi
200.0 bar
Valves4 to 6
Pump flow53 gpm
200.6 lpm
 106 gpm (optional)
401.2 lpm
Tractor hitch
Rear TypeIII/IVN
Power Take-off (PTO)
Rear RPM1000 (1.75)
Dimensions & Tires
Wheelbase135 inches
342 cm
Weight31500 lbs
14288 kg
Front tire710/70R38
Rear tire710/70R38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Charging volts12
Batteries3
Battery CCA950
Battery volts12
