Challenger MT685E Tests


Challenger MT685E tractor photo
2014 - 2020
MT600E Series
Row-Crop tractor
Series map:
MT675E
MT685E
320.0hp
340.0hp
OCED Tractor Test 2910

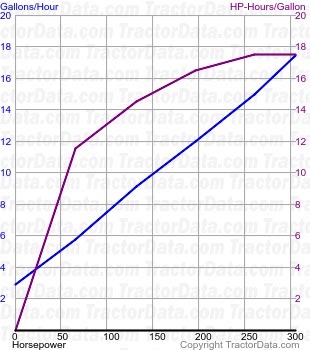

MT685E fuel use from test 998
OCED Tractor Test 2910
Diesel TechStar CVT 4WD
January 2015 - April 2015,
Link: OCED Tractor Test 2910 file
PTO performance
Max power326.4 hp
243.4 kW
Fuel use17.5 gal/hour
66.2 l/hour
Power at rated engine speed304.8 hp
227.3 kW
Fuel use17.4 gal/hour
65.9 l/hour
Power at rated PTO speed314.7 hp
234.7 kW
Fuel use17.5 gal/hour
66.2 l/hour
Drawbar performance
Max power269.8 hp
201.2 kW
Fuel use17.4 gal/hour
65.9 l/hour
Pull at 10.39KPH
Max pull21875 lbs
9922 kg
Pull at 2.55KPH
