CaseIH Magnum 240 Engine


CaseIH Magnum 240 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 220
Magnum 240
220.0hp
240.0hp
Engine Detail
FPT
wastegate turbocharged air-to-air intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement410.6 ci
6.7 L
Bore/Stroke4.095x5.20 inches
104 x 132 mm
EmissionsTier 4
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)240 hp
179.0 kW
Maximum Power (gross)270 hp
201.3 kW
Fuel systemelectronic high pressure common rail direct injection
Cooling systemviscous fan
Rated RPM2200
Starterelectric
Starter volts12

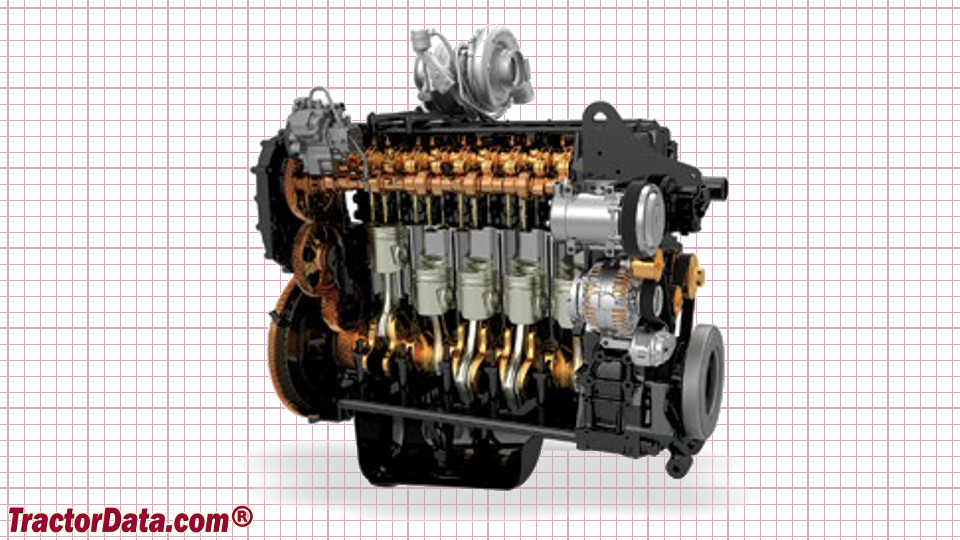

CaseIH Magnum 240 Engine
CaseIH Magnum 240 engine image
