CaseIH Magnum 200 Engine


CaseIH Magnum 200 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 180
Magnum 200
Magnum 220
180.0hp
200.0hp
220.0hp
Engine Detail
FPT
wastegate turbocharged air-to-air intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement410.6 ci
6.7 L
Bore/Stroke4.095x5.20 inches
104 x 132 mm
EmissionsTier 4
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)200 hp
149.1 kW
Maximum Power (gross)245 hp
182.7 kW
Fuel systemelectronic high pressure common rail direct injection
Cooling systemviscous fan
Rated RPM2200
Starterelectric
Starter volts12

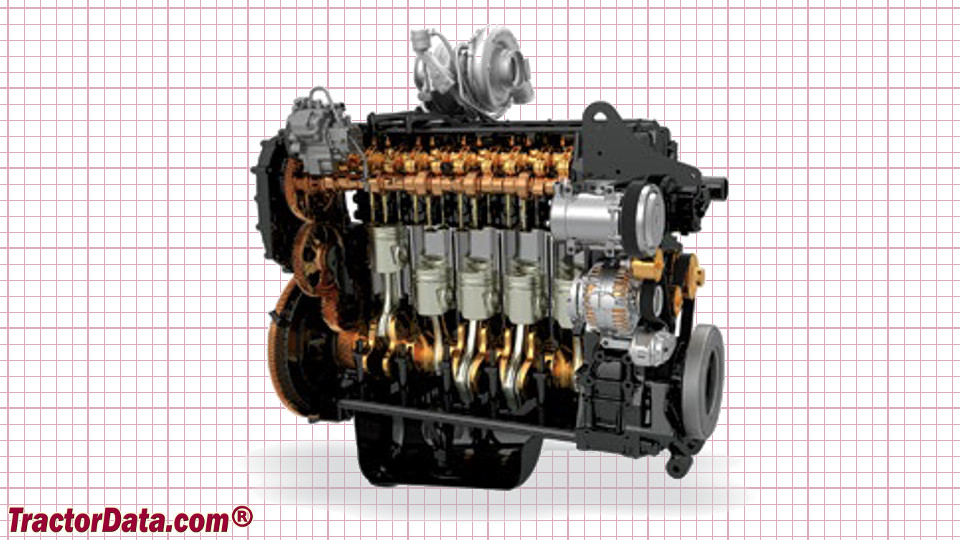

CaseIH Magnum 200 Engine
CaseIH Magnum 200 engine image
