Challenger MT585D Tests


Challenger MT585D tractor photo
2012 - 2014
MT500D Series
Row-Crop tractor
Series map:
MT575D
MT585D
MT595D
200.0hp
220.0hp
240.0hp
Tractor Tests
OECD 2706: diesel Techstar CVT 4WD
OECD 2757: diesel AutoPower VI 4WD
OCED Tractor Test 2706

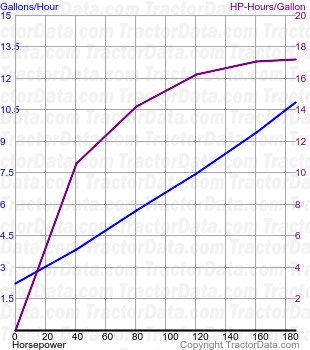

MT585D fuel use from test 845
OCED Tractor Test 2706
Diesel Techstar CVT 4WD
January 2012 - May 2012,
Link: OCED Tractor Test 2706 file
PTO performance
Max power212.0 hp
158.1 kW
Fuel use11.5 gal/hour
43.5 l/hour
Power at rated engine speed187.5 hp
139.8 kW
Fuel use10.9 gal/hour
41.3 l/hour
Power at rated PTO speed201.2 hp
150.0 kW
Fuel use11.2 gal/hour
42.4 l/hour
Drawbar performance
Max power158.5 hp
118.2 kW
Fuel use10.0 gal/hour
37.9 l/hour
Pull at 7.89 KPH
Max pull16750 lbs
7597 kg
Pull at 4.33 KPH
OCED Tractor Test 2757

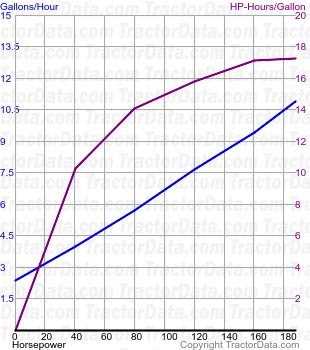

MT585D fuel use from test 908
OCED Tractor Test 2757
Diesel AutoPower VI 4WD
October 2012 - November 2012,
Link: OCED Tractor Test 2757 file
PTO performance
Max power211.7 hp
157.9 kW
Fuel use11.4 gal/hour
43.1 l/hour
Power at rated engine speed186.0 hp
138.7 kW
Fuel use10.8 gal/hour
40.9 l/hour
Power at rated PTO speed210.4 hp
156.9 kW
Fuel use11.3 gal/hour
42.8 l/hour
Drawbar performance
Max power161.7 hp
120.6 kW
Fuel use9.8 gal/hour
37.1 l/hour
Gear 3A used for power test.
Max pull17290 lbs
7842 kg
Gear 1F used for pull test.
