Challenger MT485D Tests


Challenger MT485D tractor photo
2014 - 2016
MT400D Series
Utility tractor
Series map:
MT475D
MT485D
MT495D
130.0hp
135.0hp
150.0hp
Tractor Tests
OECD 2794: diesel CVT 4WD
OECD 2833: diesel AutoPower IV 4WD
OCED Tractor Test 2794

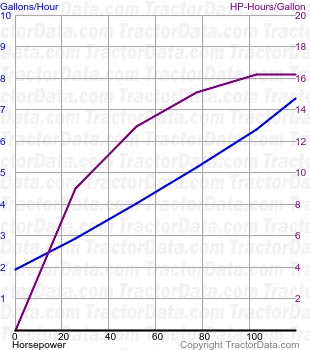

MT485D fuel use from test 920
OCED Tractor Test 2794
Diesel CVT 4WD
August 2013 - September 2013,
Link: OCED Tractor Test 2794 file
PTO performance
Max power136.9 hp
102.1 kW
Fuel use7.7 gal/hour
29.1 l/hour
Power at rated engine speed119.8 hp
89.3 kW
Fuel use7.2 gal/hour
27.3 l/hour
Power at rated PTO speed132.4 hp
98.7 kW
Fuel use7.6 gal/hour
28.8 l/hour
Drawbar performance
Max power87.9 hp
65.5 kW
Fuel use6.9 gal/hour
26.1 l/hour
Pull at 8.17KPH
Max pull13850 lbs
6282 kg
Pull at 3.62KPH
OCED Tractor Test 2833

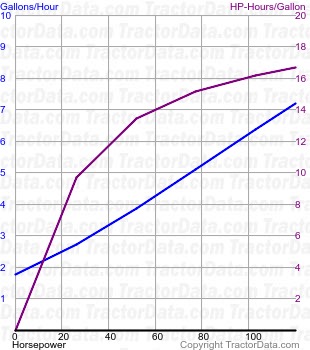

MT485D fuel use from test 956
OCED Tractor Test 2833
Diesel AutoPower IV 4WD
February 2014 - March 2014,
Link: OCED Tractor Test 2833 file
PTO performance
Max power136.5 hp
101.8 kW
Fuel use7.8 gal/hour
29.5 l/hour
Power at rated engine speed119.4 hp
89.0 kW
Fuel use7.4 gal/hour
28.0 l/hour
Power at rated PTO speed133.8 hp
99.8 kW
Fuel use7.7 gal/hour
29.1 l/hour
Drawbar performance
Max power99.0 hp
73.8 kW
Fuel use7.2 gal/hour
27.3 l/hour
Gear 3A used for power test.
Max pull12350 lbs
5601 kg
Gear 1D used for pull test.
