| | 2013 - 2016 |
| M60 Series | | Utility tractor |
|
Series map:
M8560
M9960
85.5hp
100.0hp
| Transmissions overview |
| 8-speed power shuttle |
| 12-speed |
| 24-speed 2-speed power shift |
| Transmission |
| Type | power shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | wet discs
|
| Four synchronized gears (1-4) in two ranges (low/high). |
| Transmission |
| Transmission | power shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | wet discs
|
| Six synchronized gears (1-6) in two ranges (low/high). |
| Transmission |
| Type | 2-speed power shift
|
| Gears | 24 forward and reverse
|
| Clutch | wet discs
|
| Six synchronized gears (1-6) in two ranges (low/high) with two-speed power shift. |

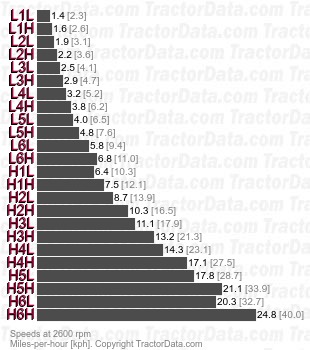

| Speeds |
| With 480/70R34 rear tires. |
|
