Tractors > Belarus > 5260

Belarus 5260

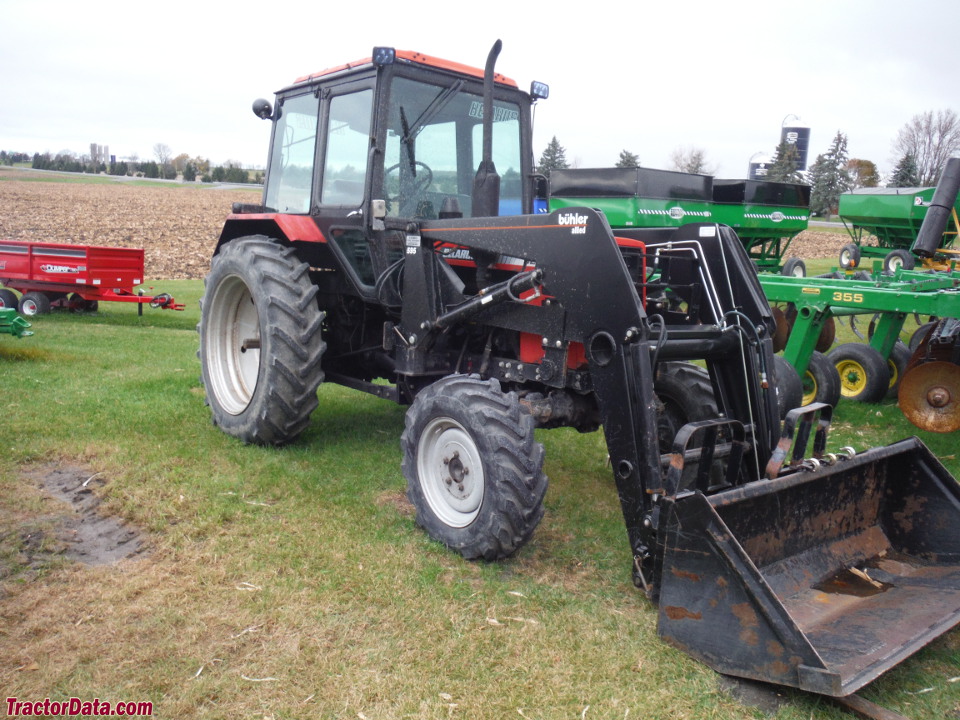

Belarus 5260 tractor photo
1996 - 1996   5200 Series
Previous model:Belarus 5160
Next model:Belarus 5360
Series next:Belarus 5270






Production:

Manufacturer:Belarus


Belarus 5260 Engine:

   Belarus 4.8L 4-cyl diesel
full engine details ...


Capacity:

Fuel:28.6 gal [108.3 L]
Hydraulic system:4.8 gal [18.2 L]


3-Point Hitch:

Rear Type:II
Rear lift:4400 lbs [1995 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)


Dimensions & Tires:

Wheelbase:96.4 inches [244 cm]
Weight:6710 to 7870 pounds
Front tire:9.0x20
Rear tire:15.5x38 (2WD)
full dimensions and tires ...


5260 Serial Numbers:


- Serial numbers unknown -



Belarus 5260 Power:

PTO (claimed):65 hp [48.5 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:hydraulic rear lock
Steering:hydrostatic power
Brakes:mechanical dry disc
Cab:Four-post ROPS. Cab optional.


Hydraulics:

Type:live open center
Capacity:4.8 gal [18.2 L]
Pressure:2800 psi [193.1 bar]
Valves:2
Pump flow:9.9 gpm [37.5 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:50


Battery:

Number:2
Volts:12
